Product Description and Application

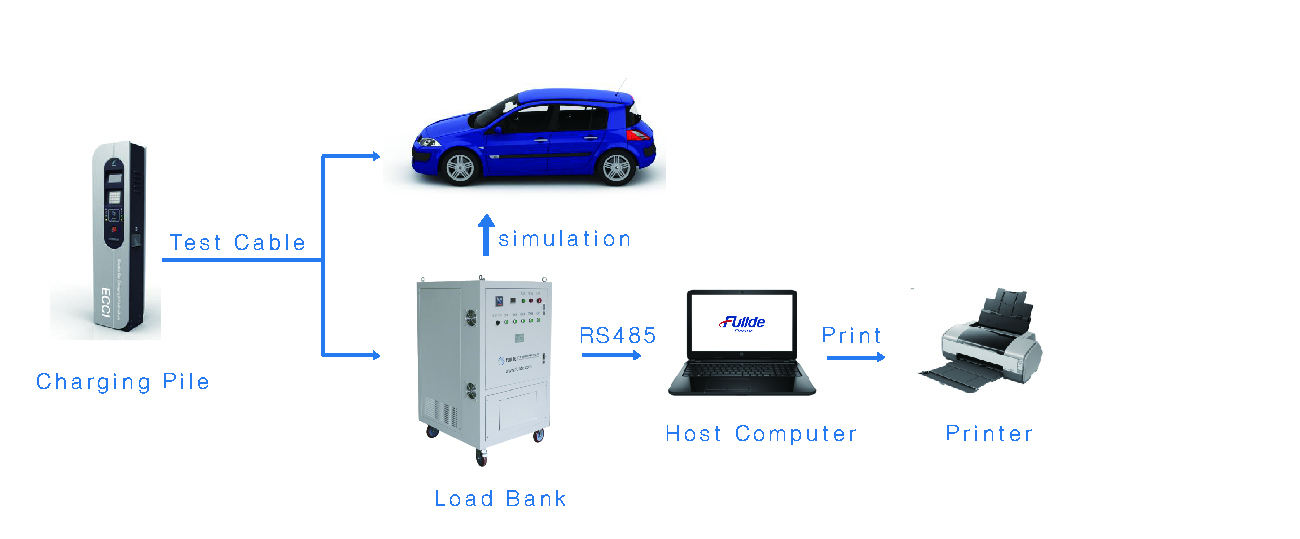

With the development electric vehicle, the market demand of corresponding charging pile is become larger and larger, the charging requirements are increasingly high, in order to ensure the safety of charging, charging pile test and operation and maintenance must be charged with load experiment, our produced are specifically designed for DC load charging pile test.
The test device compatible with the international standards, marine standards, national standards, national military of combustion turbine power station and and industry standards for generating test requirements.
Main Functions of Load Bank
* The basic functions, such as voltage, current, power, power factor, frequency, operating time, etc., are measured;
* Voltage, frequency tuning test, wave test, transient test function, can automatically test the voltage maximum, minimum, and recovery time;
* Remote control by computer;
* Automatically generate a variety of charts, testing reports;
* High power density, save valuable space;
* In the loading, unloading voltage programmable measurement, reduce accidents;
Specifications
| Test voltage | 500V |
| Steps of Load Bank | The resistance steps: 1A,2A,2A,5A,10A,20A,30A,30A,30A,30A,in total 160A, 10steps. |
| Resistance Load Bank | 80KW |
| Loading Precision | ±5% |
| Testing Precision | 0.5 |
| Connection way | Single, Rechargeable gun socket |
| Dimension | 850*1000*1400(mm) |
| Type of Load Bank | Pure resistive |
| Control way | Execute the contactor by the button switch |
| Working power supply | 3KW,380VAC/50Hz |
| Insulation class | F |
| Protection class | IP23 |
| Power factor | 0.8 |
| Working method | continuous |
| Working power supply | single phase AC220V 50Hz/ three phase AC380V 50Hz |
| Ambient temperature | -25℃~55℃ |
| Cooling method | forced air cooling |
| Weight | ≈180KG |
| Insulation class | F |
| Condition | Altitude ≤ 2500 m; daily average humidity ≯ 95%; monthly average humidity ≯ 90% |
| Protection class | IP56 |
| Load extension | 1 + N load cell parallel expansion |
